DT7K

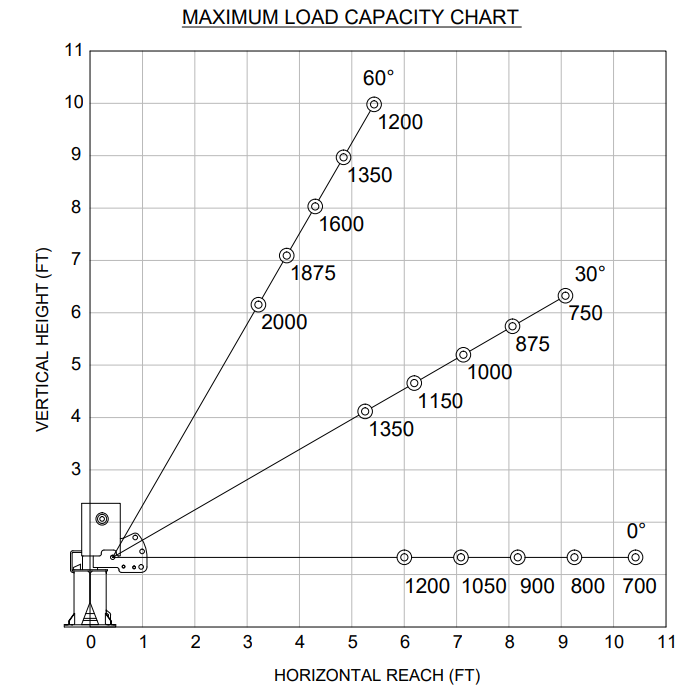

Max. Capacity 2,200 lb
Crane Rating 7,000 ft-lb
Max. Reach 10 ft
Get A Quote

A Simple Solution

The Venturo DT7K is a 7,000 ft.-lbs. crane with 2,200 lb. lifting capacity. A light-weight and low-cost alternative to our full-featured ET series cranes.  The DT7K features an electric winch but includes manual rotation, elevation and boom extension.

Get A Quote

PRODUCT FEATURES

Maximum Reach
With a maximum boom extension of 10 ft, the DT7K gives you the reach you need as a low-cost alternative.

Light-Weight
Increase the payload of your service truck with this low-weight crane while still gaining a 2,200 lb capacity.

Get A Quote

specifications

  • Maximum Lift Capacity
  • 2,200 lb (998 kg)
  • Crane Rating
  • 7,000 ft-lb
  • Maximum Reach
  • 10 ft
  • Boom Extension
  • Manual 6 ft - 10 ft
  • Rotation
  • Continuous Manual Rotation w/ 8-position base-lock
  • Power Source
  • Electric Power 12V DC
  • Wire Rope
  • 50 ft of 3/16" Aircraft-Quality Wire Rope
  • Stowed Height
  • 31"
  • Mounting Space
  • 12" x 12" Mounting Plate
  • Weight
  • 285 lb
  • Minimum GVWR
  • 8,000 lb

standard features

  • ✔ Spring counterbalanced, 3-position manual boom elevation
  • ✔ 8-position base-lock to hold mast firmly in place while in use or travelling
  • ✔ Load-hook tie-down eye built into base
  • ✔ Remote Control Pendant with 15 ft cord and Quick Disconnect
  • ✔ Load block with swivel hook and safety latch
  • ✔ Master Disconnect Switch Kit
  • ✔ 25 ft, 4-gauge battery cable
  • Options:
  • Mounting pedestal for increased working heights
  • Outrigger Packages (Crankdown/Side-Bracket/Fold-Away)
  • Quick disconnect battery cable plug/socket
