ET18KX(X)

Max. Capacity 4,500 lb
Crane Rating 18,000 ft-lb
Max. Reach 16 ft | 20 ft
Min. Truck Size Needed (GVWR) Class 3 (11,000 lb)
Get A Quote

Tried and True.

The Venturo ET18KX is a 4,500 lb crane that utilizes a crane service body but can be used for a variety of jobs and applications.  Large enough to pull heavy equipment, docks or any other loads at a distance with larger capacity, the crane is also small enough for a mid-size GVWR truck.  The ET18KX comes in two configurations, the standard ET18KX with 4′ hydraulic/4′ manual boom extension to 16′ and also the ET18KXX-20 which offers a full-hydraulic boom extension out to 20 ft.  These cranes also feature optional proportional controls.

Get A Quote Contact Sales

PRODUCT FEATURES

Two Variations of Crane
The ET18KX comes in two configurations giving operators greater productivity at their jobsite.  The ET18KX comes with 4′ Hydraulic Extension/4′ Manual Extension to 16′, the ET18KXX-20 comes with full-hydraulic extension 10′ – 20′.

DC Winch
The ET series winches combine a powerful permanent magnet DC motor with robust sealing with proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service.

Manual Crane Override
Each ET series crane gives the user the ability to operate and stow the crane if there is power loss through the remote controls.  These functions allow boom-retract, boom-down and winch functions.

Proportional Control
The ET18KX and ET18KXX-20 both have optional proportional controls which allow the crane operator to manage the speed of the hydraulic functions on the crane.  This gives them more control over load speeds.

Get A Quote

specifications

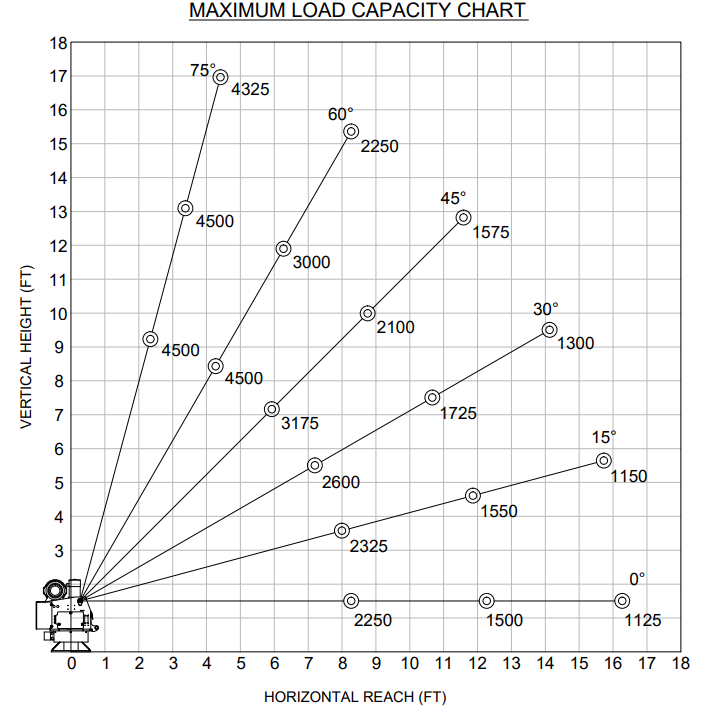

  • Maximum Lift Capacity
  • 4,500 lb (2,041 kg)
  • Crane Rating
  • 18,000 ft-lb
  • Maximum Reach
  • ET18KX: 16 ft | ET18KXX-20: 20 ft
  • Boom Extension
  • ET18KX: Hydraulic: 8 ft - 12 ft, Manual: 12 ft - 16 ft
  • ET18KXX-20: Hydraulic: 10 ft - 16 ft - 20 ft
  • Rotation
  • 360° Continuous Power
  • Power Source
  • Electric-Hydraulic (12V DC)
  • Wire Rope
  • 80 ft of 5/16" Aircraft-Quality Wire Rope
  • Stowed Height
  • 26-5/8"
  • Mounting Space
  • 14" x 14" Mounting Plate
  • Weight
  • 1,020 lb
  • Minimum GVWR
  • 10,500 lb

standard features

  • ✔ Capacity Overload Shut-Off System
  • ✔ Anti-Two Blocking System
  • ✔ 25 ft Remote Control Pendant with Quick Disconnect
  • ✔ Load block with swivel hook safety latch
  • ✔ Master Disconnect Switch Kit
  • ✔ 25 ft, 2-gauge battery cable

minimum requirements

  • Class 3 (10,500 lb GVWR Chassis)
  • Rear Outriggers
  • Electric Power Source: 12V DC

optional equipment

  • Proportional Control
  • Wireless FM Remote Control with Onboard Diagnostic System and Receiver
  • Capacity Overload Alarm
  • Electric/Hydraulic Outrigger Packages
  • Mounting Pedestal for platform bodies (36")
  • Adjustable Boom Rest (18" - 26")
  • 250 AMP Circuit Breaker Kit
  • Custom Paint (Solid color, single-stage Imron, non-metallic)
