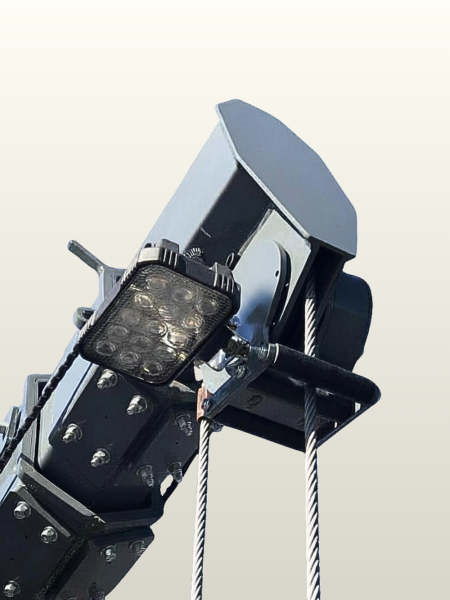

Ultra Bright 6″ Boom-Tip Worklight
6 Inch by 5 Inch Ultra Bright Rectangular LED Clear Flood Light has a die cast aluminum body and impact-resistant polycarbonate lens. It features 15 high intensity LEDs that pump out 9000 lumens of light over a 207 meter area. Light automatically adjusts to angle of load.
Part# 27484
|
 |
Venturo® E-Z Sto™
Increase the ease of stowing the load block with the E-Z Sto™.
E-Z Sto™ works in conjunction with the open stowage C-hook under the boom. It can be conveniently released from the open stowage C-hook by raising the boom to 60° and then lowering the winch wire rope.
Part# 23257
|
 |
Pumps
Venturo offers variations of pumps for your HT Service Cranes
| Model |
GPM |
Pump Type |
Part # |
HT66KX
HT50KX-P
HT45KX
HT40KX-P |
12 @ 1200 RPM
10 @ 1200 RPM
10 @ 1200 RPM
10 @ 1200 RPM |
B Flange, 7/8″ – 13 Spline |
19296-10.0 |
HT50KX
HT40KX |
2.6 @ 1000 RPM |
A Flange, 5/8″ – 9 Spline |
19296-2.64 |
HT30KX-P
HT25KX-P |
4.0 @ 1000 RPM |
A Flange, 5/8″ – 9 Spline |
19269-4.0 |
| HT30KX |
2.0 @ 1250 RPM |
A Flange, 5/8″ – 9 Spline |
19296-2.0 |
| HT25KX |
2.0 @ 1250 RPM |
A Flange, 5/8″ – 9 Spline |
19296-1.60 |
|
 |
Bulkhead Mount Reservoirs
Reservoirs include a 100-mesh suction screen, 10-micron return filter, return and supply pressure gauges, sight glass and breather cap.
| Model |
Size (Gallons) |
Weight |
Part # |
| HT66KX |
40 GAL. |
130 lbs |
22998 |
HT50KX
HT45KX
HT40KX-P |
25 GAL. |
87 lbs |
22785 |
HT40KX
HT30KX
HT25KX |
10 GAL. |
49 lbs |
19294 |
|
 |
Mounting Pedestals
Mounting pedestals are engineered solely for Venturo service cranes. **NOTE** There is an available 8″ High mounting pedestal (#20480) for the CT310KX and also fits the ET6K. This is not recommended for the ET6K unless the service body has a telescopic roll top. Call for assistance, 800-226-2238.
| Model |
Mounting Pedestals |
Weight |
Part # |
| HT66KX |
36″ High – Platform Body |
376 lbs |
27656-36 |
HT50KX
HT45KX
HT40KX
|
36″ High – Platform Body |
376 lbs |
17830-36 |
HT30KX
HT25KX
ET36KX
ET30KX
ET25KX |
36″ High – Platform Body |
376 lbs |
17576-36 |
|
4516E
4520E
4016E
4020E
|
36″ High – Platform Body |
197 lbs |
21699-36 |
3515E
3516E
ET8K(X) |
21″ & 36″ High – Platform Body |
95 lbs
130 lbs |
21571-21
21571-36 |
| ET6K |
21″ & 36″ High – Platform Body |
95 lbs
130 lbs |
26022-21
26022-36 |
| CT310KX |
8″, 21″, 36″ High – Platform Body |
65 lbs
95 lbs
130 lbs |
20480-8
20480-21
20480-36 |
| DT7K |
21″ & 36″ High – Platform Body |
65 lbs
95 lbs |
14930-21
14930-36 |
|
 |
Service Crane Boom Rest
Designed and engineered for Venturo Service crane boom structures to sit nicely into harness. **NOTE** Boom rests for smaller ET cranes include a hook latch for lower-sitting cranes that do not have an open C-hook on the underside of the boom.
| Model |
Boom Rest |
Weight |
Part # |
HT66KX
HT50KX
HT45KX
HT40KX |
Adjustable 18″ – 26″ – For utility bodies |
48 lbs |
20381-1 |
HT30KX
HT25KX
ET36KX
ET30KX
ET25KX
4516E
4520E
4016E
4020E
|
Adjustable 18″ – 26″ – For utility bodies |
48 lbs |
20381-2 |
3515E
3516E
ET8K(X)
ET6K |
Adjustable 13″ – 19″ – For utility bodies |
48 lbs |
21440 |
|
 |
Mounting Sockets
Mounting sockets are available for CT2000 series cranes only. The sockets include a “recessed” and “pedestal” design for varied mounting on flatbeds, service beds or pickup beds.
| Model |
Type |
Part # |
| CT2000 Series |
Type “A”, Recessed |
13171 |
| CT2000 Series |
Type “C”, Pedestal |
13172 |
|
 |

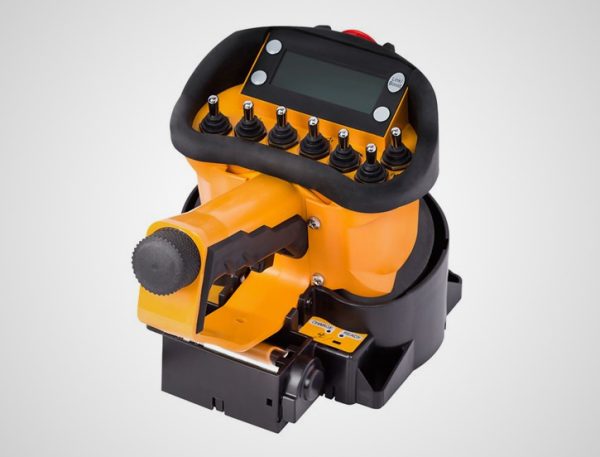

Radio & Pendant Controllers
Venturo offers Wireless-Radio Remotes for all Venturo service cranes. Pendant, corded controllers are standard with all models. VLC Controllers are standard, wireless with all VLC capable hydraulic cranes.
| Model |
Type |
Part # |
| Hydraulic Service Cranes |
Base Non-Proportional 25 ft. Standard Corded Remote
Base Non-Proportional Wireless Remote
Base Proportional 25 ft. Standard Corded Remote
Base Proportional Wireless Remote

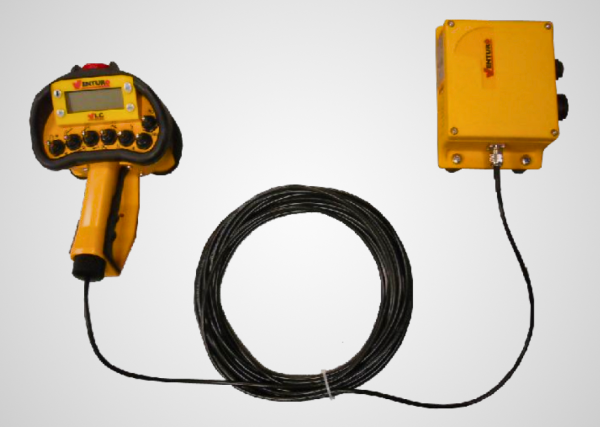

VLC Proportional Wireless Remote w/ 40 ft. CAN cord capability |
Call |
| Electric-Hydraulic Service Cranes |
Base Proportional Wireless Remote (ET12KXP Only)
Base Proportional 25 ft Standard Corded Remote (ET12KXP Only)
Base Ranger Wireless Remote
Base 25 ft. Standard Corded Remote |
Call |
|
 |
Circuit Breaker Kits
Venturo offers 150, 250 & 300 AMP Circuit Breaker kits for its Electric-Hydraulic, Electric-Light Duty and Van Cranes.
| Model |
Type |
Part # |
ET36KX
ET30KX
ET25KX
|
300 AMP Circuit Breaker Kit |
22946-300 |
4516E
4520E
4016E
4020E
3515E
3516E
ET8K(X)
ET6K
CT310KX
CT2000 Series
CE6K (Heavy Duty) |
250 AMP Circuit Breaker Kit |
22946-250 |
CE6K (Standard Duty)
CE1500FB
ESV1000
VC1000
VC750FB |
150 AMP Circuit Breaker Kit |
22946-150 |
|
| |
Engine Start/Stop & Throttle Controls (HT Cranes)
Includes pendant switches, wiring harness and relays to supply a 12 volt or ground signal to the engine compartment. Does not include an auxiliary electric or vacuum speed controller. (Available only with Proportional Controls on Hydraulic Service Cranes)
|
