HT25KX

Max. Capacity 5,000 lb @ 5 ft
Crane Rating 25,000 ft-lb
Max. Reach 20 ft
Min. Truck Size Needed (GVWR) Class 3 (10,500 lbs)
Get A Quote

5,000 lb Capacity at 5 ft

(VLC) Venturo Logic Control System COMING SOON!

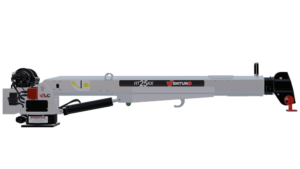

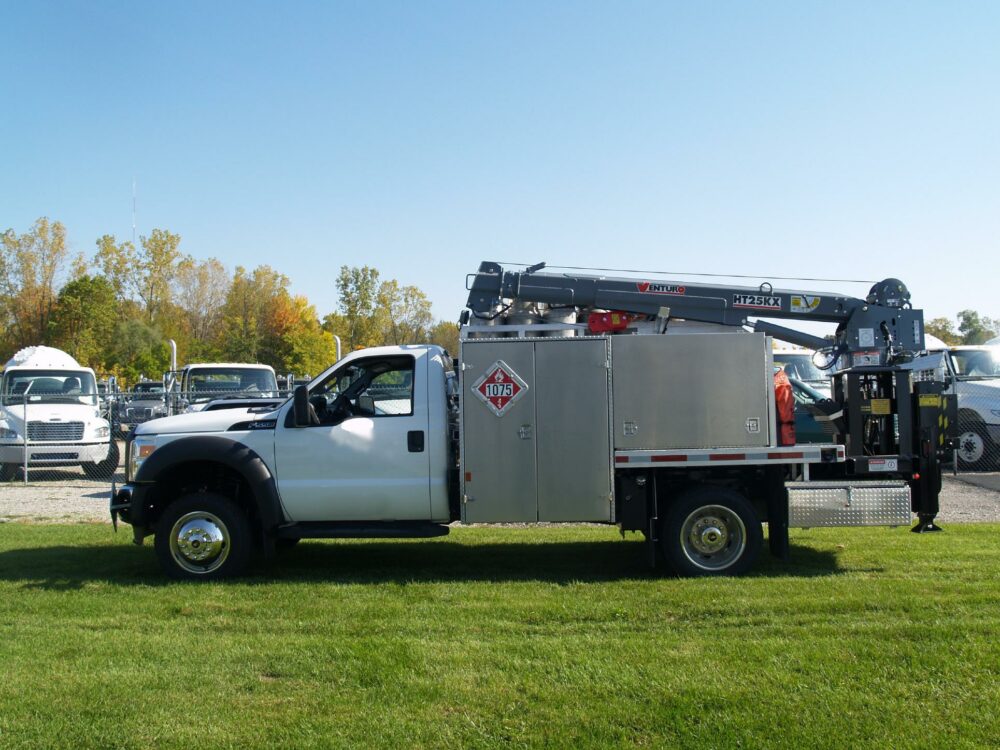

The Venturo HT25KX is a 25,000 ft-lb hydraulic service crane with a 5,000 lb maximum capacity at 5 ft.  This larger crane gives operators the distance and strength they need for heavier loads at a short distance.  The HT25KX gives operators a 5,000 lb capacity with full-hydraulic functions for longer duty-cycle use.



Get A Quote Contact Sales

PRODUCT FEATURES

Different Configurations
The HT25KX is offered with Proportional or Non-Proportional controls.

Additional Safety Controls
Venturo hydraulic service cranes feature an “Overload Sensing System” and the “Anti-Two Block System”.  These safety controls keep the crane from exceeding the weight capacity and allows the operator to lower the load, shutting off lifting/extending functions but keeping the rotation/lowering functions.

Hydraulic Winch
The HT series cranes feature a high-efficiency planetary gear reduction with a spring-applied hydraulic released multi-disk brake driven by a hydraulic gear motor.

Manual Crane Override
Each HT series crane gives the user the ability to operate and stow the crane if there is power loss through the remote controls.  These functions allow boom-retract, boom-down and winch functions.

Get A Quote

specifications

  • Maximum Lift Capacity
  • 5,000 lb @ 5 ft (2,268 kg)
  • Crane Rating
  • 25,000 ft-lb
  • Maximum Reach
  • 20 ft
  • Boom Extension (Non-Proportional Control)
  • Hydraulic: 10 ft - 16 ft, Manual: 16 ft - 20 ft
  • Boom Extension (Proportional Control)
  • Hydraulic: 10 ft - 20 ft
  • Rotation
  • 400° Power Rotation
  • Power Source
  • Hydraulic with Pump & PTO
  • Wire Rope
  • 80 ft of 5/16" Aircraft-Quality Wire Rope
  • Stowed Height
  • 30-5/8"
  • Mounting Space
  • 16" x 16" Mounting Plate
  • Weight
  • 1,535 lb
  • Minimum GVWR
  • 10,500 lb

standard features

  • ✔ Hexagonal Boom Construction for additional strength
  • ✔ Capacity Overload Shut-Off System
  • ✔ Anti-Two Blocking System
  • ✔ 25 ft Remote Control Pendant with Quick Disconnect
  • ✔ Load block with swivel hook safety latch

Non-Proportional Control

  • Non-proportional valve control
  • Pendant with pre-set speed toggle switches
  • Hydraulic Boom Ext 10' - 16' (4' Manual)
  • High-efficiency hydraulic planetary winch
  • Load-holding counterbalance on all cylinders
  • Hydraulic Requirements: 2 GPM @ 3000 PSI, 6 GAL. Reservoir

Proportional Controls

  • Proportional control valve
  • Pendant with variable speed trigger switch
  • Fully-hydraulic boom extension 10' - 20'
  • High-efficiency hydraulic planetary winch
  • Load-holding counterbalance on all cylinders
  • Hydraulic Requirements: 4 GPM @ 3000 PSI, 10 GAL. Reservoir

minimum requirements

  • Class 3 (10,500 lbs GVWR)
  • Rear Outriggers
  • PTO, Pump & Reservoir

optional equipment

  • Wireless FM Remote Control with Onboard Diagnostic System and Receiver
  • Engine Start/Stop & Throttle Controls
  • A Flange, 5/8" - 9 Spline Pumps
  • 10 Gal. Bulkhead-Mount Reservoir
  • Front/Rear - Manual or Hydraulic Outrigger Packages
  • Mounting Pedestal for platform bodies (36")
  • Adjustable Boom Rest for utility body (18" - 26")
  • Custom Paint (Solid color, single-stage Imron, non-metallic)
