HT40KX

Max. Capacity 6,000 lb
Crane Rating 40,000 ft-lb
Max. Reach 20 ft | 25 ft
Min. Truck Size Needed (GVWR) Class 4 (14,500 lbs)
Get A Quote

Setting the standard for hydraulic cranes

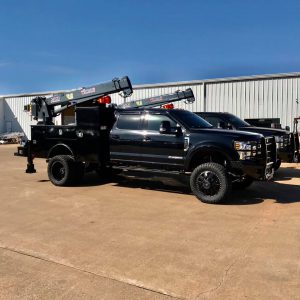

The Venturo HT40KX is a 40,000 ft-lb crane with a maximum capacity of 6,000 lbs.  This crane has become a standard service application in the propane and construction industry.  With multiple configurations, the HT40KX can be purchased as a Non-Proportional or Proportional control hydraulic crane with boom length options of 20 ft and 25 ft.

Get A Quote

PRODUCT FEATURES

Different Configurations
The HT40KX is offered with Proportional or Non-Proportional controls and also 20 ft and 25 ft boom length options.

Additional Safety Controls
Venturo hydraulic service cranes feature an “Overload Sensing System” and the “Anti-Two Block System”.  These safety controls keep the crane from exceeding the weight capacity and allows the operator to lower the load, shutting off lifting/extending functions but keeping the rotation/lowering functions.

Hydraulic Winch
The HT series cranes feature a high-efficiency planetary gear reduction with a spring-applied hydraulic released multi-disk brake driven by a hydraulic gear motor.

Manual Crane Override
Each HT series crane gives the user the ability to operate and stow the crane if there is power loss through the remote controls.  These functions allow boom-retract, boom-down and winch functions.

Get A Quote

specifications

  • Maximum Lift Capacity
  • 6,000 lb (2,722 kg)
  • Crane Rating
  • 40,000 ft-lb

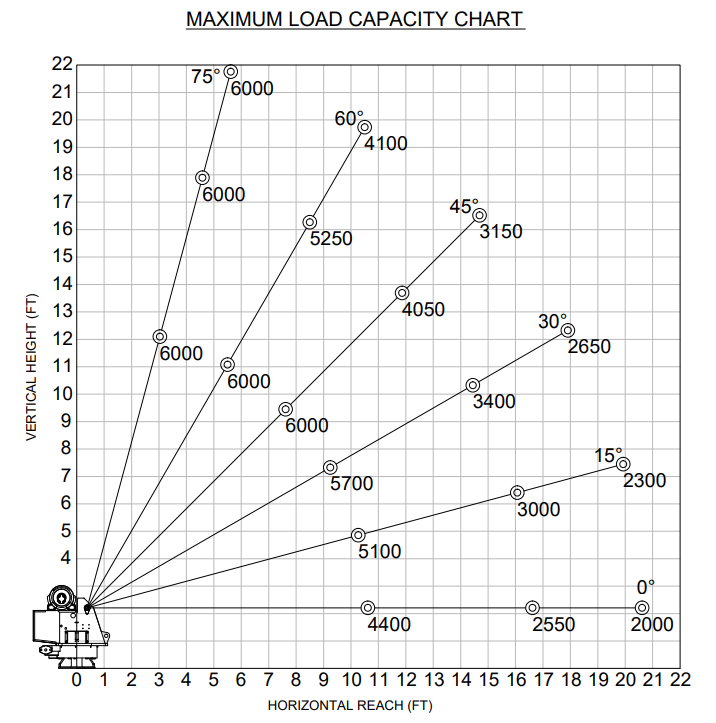

  • Maximum Reach
  • HT40KX: 20 ft

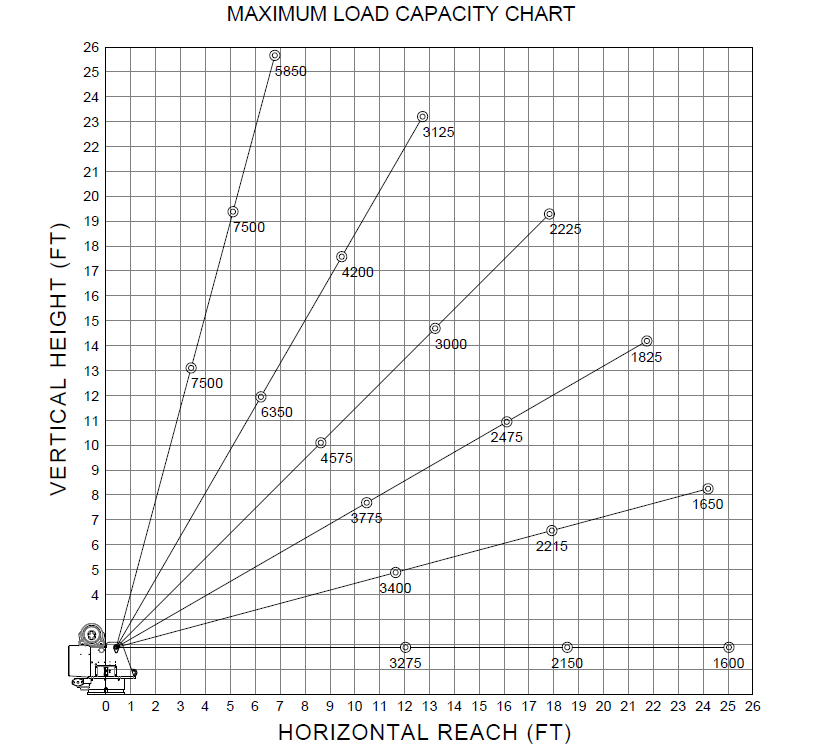

  • HT40KX-25: 25 ft
  • Boom Extension (Non-Proportional Control)
  • HT40KX: Hydraulic: 10 ft - 16 ft, Manual: 16 ft - 20 ft
  • HT40KX-25: Hydraulic: 12 ft - 18 ft - 25 ft
  • Boom Extension (Proportional Control)
  • HT40KX: Hydraulic: 10 ft - 20 ft
  • HT40KX-25: Hydraulic: 12 ft - 18 ft - 25 ft
  • Rotation
  • 400° Power Rotation
  • Power Source
  • Hydraulic with Pump & PTO
  • Wire Rope
  • 100 ft of 3/8" Aircraft-Quality Wire Rope
  • Stowed Height
  • 36-7/8"
  • Mounting Space
  • 16" x 16" Mounting Plate
  • Weight
  • HT40KX: 1,900 lb
  • HT40KX-25: 2,127 lb
  • Minimum GVWR
  • 14,500 lb

standard features

  • ✔ Hexagonal Boom Construction for additional strength
  • ✔ Capacity Overload Shut-Off System
  • ✔ Anti-Two Blocking System
  • ✔ 25 ft Remote Control Pendant with Quick Disconnect
  • ✔ Load block with swivel hook safety latch

Non-Proportional Control

  • Non-proportional valve control
  • Pendant with pre-set speed toggle switches
  • Hydraulic Boom Ext 10' - 16' (4' Manual)
  • High-efficiency hydraulic planetary winch
  • Load-holding counterbalance on all cylinders
  • Hydraulic Requirements: 2.6 GPM @ 3000 PSI,10 GAL. Reservoir

Proportional Controls

  • Proportional control valve
  • Pendant with variable speed trigger switch
  • Fully-hydraulic boom extension 10' - 20'
  • High-efficiency hydraulic planetary winch
  • Load-holding counterbalance on all cylinders
  • Hydraulic Requirements: 12 GPM @ 3000 PSI, 25 GAL. Reservoir

minimum requirements

  • Class 4 (14,500 lbs GVWR)
  • Rear Manual or Hydraulic Outriggers Packages
  • PTO, Pump & Reservoir

optional equipment

  • Wireless FM Remote Control with Onboard Diagnostic System and Receiver
  • Engine Start/Stop & Throttle Controls
  • Pumps: Non-Prop: A Flange, 5/8" - 9 Spline Prop: B Flange, 7/8" - 13 Spline
  • 10 or 25 Gal. Bulkhead-Mount Reservoir
  • Front/Rear - Manual or Hydraulic Outrigger Packages
  • Mounting Pedestal for platform bodies (36")
  • Adjustable Boom Rest for utility body (18" - 26")
  • Custom Paint (Solid color, single-stage Imron, non-metallic)
