CE1500FB

Max. Capacity 1,500 lb
Crane Rating 4,500 ft-lb
Max. Reach 3 - 5 ft
Get A Quote

A small crane solution.

The CE1500FB is an economical choice for light and medium-duty applications and includes a 1,500 LB capacity crane with electric winch, manual rotation & extension, and a folding boom

Get A Quote Contact Sales

product features

Compact Storage
The crane includes 3-5 ft manual extension boom which folds for compact storage.

Friction -Less Manual Rotation
Manual 360-degree rotation with band brake provides unlimited, easy-to-use controlled load positioning.

Multiple Height Options
Includes multiple cut-down heights to fit any application.

Get A Quote

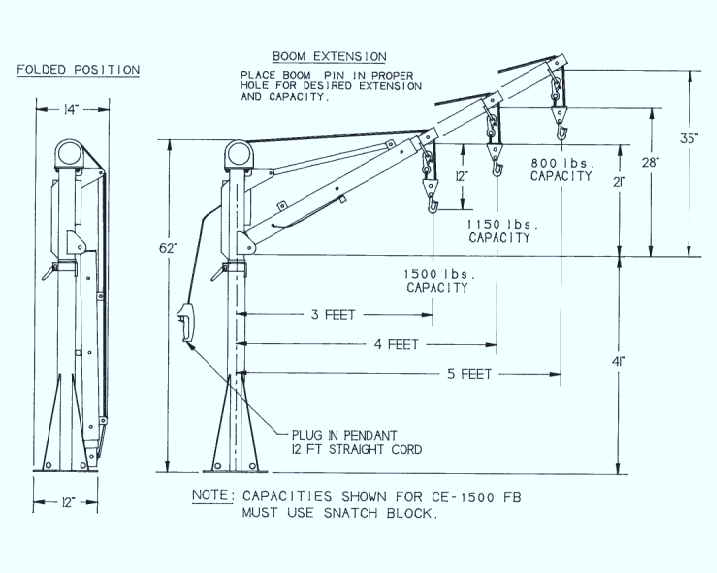

specifications

  • Maximum Lift Capacity
  • 1,500 lb (680 kg)
  • Crane Rating
  • 4,500 ft-lb
  • Maximum Reach
  • 5 ft (3-Pin Manual Extension)
  • Power Source
  • 12V DC
  • Wire Rope
  • 60 ft x 9/64" Aircraft-Quality Wire Rope (12V DC)
  • Stowed Height
  • 62-11/16"
  • Mounting Space
  • 12" x 12" Surface Mounting Socket
  • Weight
  • 165 lb
  • Recommended Item
  • 150 AMP Circuit Breaker Kit #22946-150

standard features & included items

  • 12V DC Electric Winch
  • Manual 360-degree rotation with band brake provides unlimited controlled load positioning
  • Integrated surface mounting socket with 12" x 12" base plate
  • Load Block with swivel hook and safety latch for maximum capacity loads
  • Remote Control Pendant: 17 FT. cord #CE-158
  • Battery Cables: Yellow #4 Gauge / Red #6 Gauge / Red #4 Gauge / Blue #4 Gauge / Black #6 Gauge
  • Master Disconnect Switch #13451
  • Contactor Box #CE-157

ComeUp GTD-650 DC Winch

  • 800 W, 12V Permanent magnet motor
  • Line Speed (1st Layer): 4.3 mpm / 14.1 fpm @ No load
  • Gear Ratio: 3-stage planetary 138.5:1
  • Mechanical spring applied and permanent motor dynamic brakes together
  • 60 ft x 9/64" Aircraft-Quality Wire Rope
  • Remote Control Pendant with 17 ft cord and quick disconnect

Winch Features

  • Provides an answer to the health and safety recommendations for manual lifting.
  • High efficient low amp. draw and sealed permanent magnet motor.
  • Lightweight and compact design is ideal for easy installation.
  • Mechanical spring applied and permanent motor dynamic brakes together for safe, controlled load. Waterproof industrial remote control with 5 m lead.
  • Full metal 3 stage planetary gear train for greater pulling force.
  • Submersible sealed contactor handles high amps and allows higher duty cycle.
  • In compliance with standard of ANSI B30.5 for D/d≥18 and rope safety factor ≥3.5
