CT2000 Series

Max. Capacity 2,000 lb
Crane Rating 6,000 ft-lb
Max. Reach 5 ft - 9 ft
Get A Quote

Available in 3 different lengths.

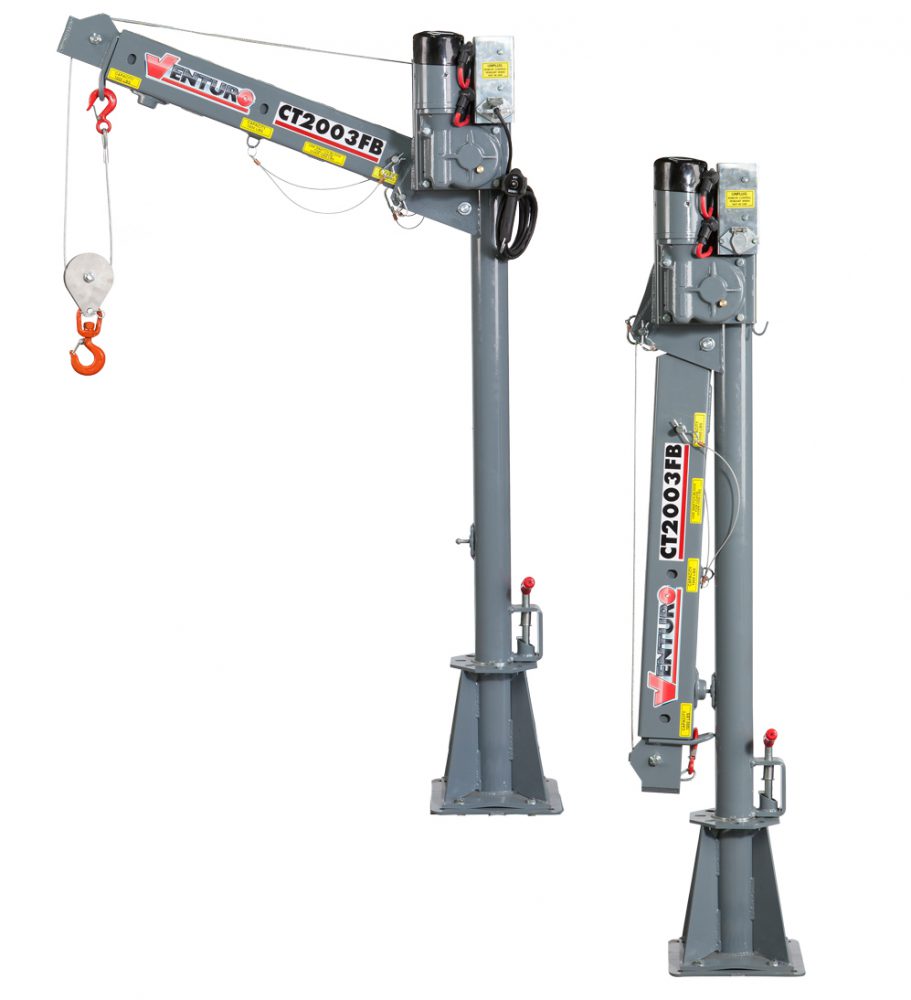

The CT2000 series cranes include the Venturo CT2003FB, CT2004FB and CT2005 models.  The Venturo CT2003FB and CT2004FB include a heavy-duty electric winch (1.8 hp) with manual rotation, manual extension, and a folding boom.  The CT2005 includes the heavy-duty winch with manual rotation, manual extension and a longer boom.  The CT2005 will not fold completely due to length of the boom.

Third Place Winner in Lift Applications & Equipment’s 2003 Pinnacle Award Competition for cranes (100 tons or less capacity).

Get A Quote Contact Sales

PRODUCT FEATURES

Multiple Configurations
The CT2000 Series gives you 3 options for the best application.  5 ft, 7 ft or 9 ft boom extension give the operator additional reach.  With the mast cut-down option, operators can mount this crane on top of a utility body.

Recessed/Standard Crane Mount
With an “A” socket, the operator can flush mount the crane which removes any mounting hardware that would typically hinder cargo movement in the bed of a vehicle.  The “C” socket will give the operator a standard crane base which sticks out above the bed of the vehicle.

Get A Quote

specifications

  • Maximum Lift Capacity
  • 2,000 lb (907 kg)
  • Crane Rating
  • 6,000 ft-lb
  • Maximum Reach
  • CT2003FB: 5 ft CT2004FB: 7 ft CT2005: 9 ft
  • Power Source
  • Electric Power (12V DC)
  • Wire Rope
  • 35 ft of 3/16" Aircraft-Quality Wire Rope (75 ft optional)
  • Stowed Height
  • 71-3/4"
  • Mounting Space
  • 10" x 10" Mounting Plate ("A" or "C" sockets)
  • Weight
  • CT2003FB: 235 lb CT2004FB: 265 lb CT2005: 280 lb

venturo heavy-duty, high-torque, high-speed winch

  • 12V DC Heavy-Duty Motor
  • 1,200 lb single-line capacity / 2,000 lb double-line capacity
  • Self-locking, oil-lubricating bronze worm gear reduction with self-adjusting, oil-cooled mechanical brake
  • Tapered flanges on winch drum cheek plates to reduce wire-rope tangle
  • Re-buildable gearbox minimizes long-term maintenance costs

standard features

  • Composite polymer and bronze self-lubricating rotation bearings are not sensitive to water, dirt or chemical contamination
  • Mounting sockets allow easy crane removal for multiple operation locations and varied uses of vehicle
  • 360-degree Manual Rotation with 8-position base lock to hold mast firmly in position while in use and while travelling
  • Remote Control Pendant with 15 ft cord and quick disconnect
  • Master Disconnect Switch Kit
  • Load block with swivel hook and safety latch
  • 25 ft, 4-gauge battery cable

optional equipment

  • Outrigger packages for all styles of bodies
  • 250 AMP Circuit Breaker Kit
  • Quick disconnect battery cable plug/socket
  • Recessed or surface mounting sockets for multiple operating locations
  • Short mast for mounting on top of utility body
