ET36KX

Max. Capacity 6,000 lb
Crane Rating 36,000 ft-lb
Max. Reach 20 ft
Min. Truck Size Needed (GVWR) Class 4 (14,500 lb)
Get A Quote

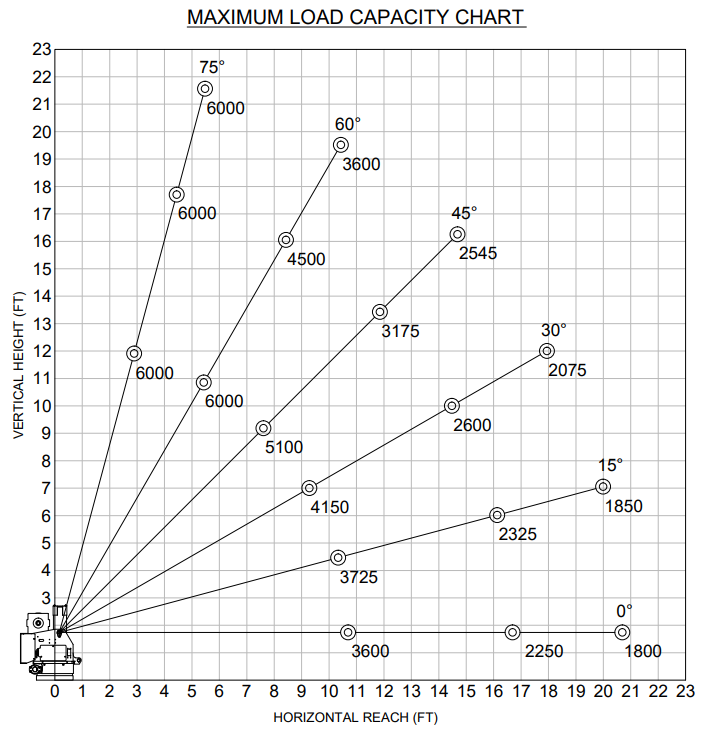

6,000 lb Capacity at 6 ft

The Venturo ET36KX is a 36,000 ft-lb electric-hydraulic service crane with a 6,000 lb maximum capacity at 6 ft.  This larger crane gives operators the distance and strength they need for heavier loads at a longer distance.

This crane features a full-hydraulic powered extension up to 20 ft.

Get A Quote Contact Sales

PRODUCT FEATURES

Counterbalance Valves
Adds another safety feature by preventing the hydraulic boom from retracting or lowering should a loss of hydraulic pressure occur.

DC Winch
The ET series winches combine a powerful permanent magnet DC motor with robust sealing with proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service.

Manual Crane Override
Each ET series crane gives the user the ability to operate and stow the crane if there is power loss through the remote controls.  These functions allow boom-retract, boom-down and winch functions.

Get A Quote

specifications

  • Maximum Lift Capacity
  • 6,000 lb (2,722 kg)
  • Crane Rating
  • 36,000 ft-lb
  • Maximum Reach
  • 20 ft
  • Boom Extension
  • Hydraulic: 10 ft - 20 ft
  • Rotation
  • 360° Continuous Power
  • Power Source
  • Electric-Hydraulic (12V DC)
  • Wire Rope
  • 80 ft of 5/16" Aircraft-Quality Wire Rope
  • Stowed Height
  • 28-7/8"
  • Mounting Space
  • 16" x 16" Mounting Plate
  • Weight
  • 1,535 lb
  • Minimum GVWR
  • 14,500 lb

standard features

  • ✔ Hexagonal Boom Construction for additional strength
  • ✔ High-efficiency planetary electric winch
  • ✔ Load-holding counterbalance on all cylinders
  • ✔ Capacity Overload Shut-Off System
  • ✔ Anti-Two Blocking System
  • ✔ 25 ft Remote Control Pendant with Quick Disconnect
  • ✔ Load block with swivel hook safety latch
  • ✔ Master Disconnect Switch Kit
  • ✔ 25 ft, 2-gauge battery cable

minimum requirements

  • (Class 4) 11,000 lb GVWR Chassis
  • 25100 Series Outriggers - or equivalent
  • Electric Power Source: 12V DC

optional equipment

  • Wireless FM Remote Control with Onboard Diagnostic System and Receiver
  • Capacity Overload Alarm
  • Cable Overhaul Weight
  • Electric/Hydraulic Outrigger Packages
  • Mounting Pedestal for platform bodies (36")
  • Adjustable Boom Rest (18" - 26")
  • 300 AMP Circuit Breaker Kit
  • Custom Paint (Solid color, single-stage Imron, non-metallic)
