• MAX. CAPACITY 10,000 lb
  • CRANE RATING 60,000 ft-lb
  • MAX. REACH 25 ft | 30 ft
  • MIN. TRUCK SIZE NEEDED (GVWR) Class 6 (25,000 lbs)

Get A Quote

10,000 lb of brute, hydraulic strength

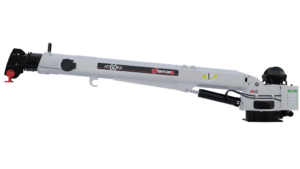

The Venturo HT60KX with VLC™ controls features a maximum capacity of 10,000 lb.  Venturo’s new Electronic Crane Control Management System provides added safety and benefits for crane operators.  Benefits include a standard, wireless, pistol-grip controller, overload protection which controls and prevents any type of overload, LCD Display Screen alerts, transmitter handle vibrations, green/yellow/red alert lights under boom, and corresponding lights on the receiver. The LCD display shows percentage of load, boom angle in degrees and percentage of total capacity during crane operation. The VLC™ system also provides vehicle stability and grade control.

Contact Sales

Product Features

Wireless Remote
Wireless-remote, pistol-grip controller.  This will be a standard feature as part of the (VLC™) system for ALL proportionally-controlled Venturo Hydraulic Service Cranes.

Precision-overload protection increases operator safety by controlling and preventing any type of overload on the crane.  A result of this feature is a lighter-weight crane, which increases payload capacity on your service truck!

Multiple safety and capacity alerts.  The VLC™ system features (4) alerts:

  • LCD Display Screen Text
  • Transmitter handle vibrations
  • Green/Yellow/Red alert light located on the underside of the boom
  • Corresponding lights on the wireless receiver

Real-time load and status LCD display shows percentage of load, boom angle in degrees, and percentage of total capacity during crane operation.

Vehicle stability and grade control:

Grade Functions
Less than 4.5° Full-capacity and normal operation of the crane
4.5° – 6.5° All crane functions are reduced to 50%
Greater than 6.5° Winch-up, Boom-out and Boom-down functions are prevented


  • Maximum Lift Capacity 10,000 lb (3,629 kg)
  • Crane Rating 60,000 ft-lb
  • Maximum Reach HT60KX-20: 20 ft
    HT60KX-25: 25 ft
    HT60KX-30: 30 ft
  • Boom Extension HT60KX: Hydraulic: 10 ft - 16 ft - 20 ft
    HT60KX-25: Hydraulic: 12 ft - 18 ft - 25 ft
    HT60KX-30: Hydraulic: 13.5 ft - 21 ft - 30 ft
  • Rotation 400° Power Rotation
  • Power Source Hydraulic with Pump & PTO
  • Wire Rope 100 ft of 3/8" Aircraft-Quality Wire Rope
  • Stowed Height 36-7/8"
  • Mounting Space 16" x 16" Mounting Plate
  • Weight HT60KX: 1,900 lb
    HT60KX-25: 2,125 lb
  • Minimum GVWR (Class 6) 20,500 lb
  • Wireless-Remote, pistol-grip controller with LCD Display Screen Text and Transmitter handle vibrations
  • Precision-overload protection
  • Green/Yellow/Red alert light located on the underside of the boom
  • Corresponding alert lights on the wireless receiver
  • Hexagonal Boom Construction for additional strength
  • New Auto-Adjust Anti-Two Blocking System
  • Class 6 (20,500 lbs GVWR)
  • Rear Hydraulic Outriggers Packages
  • PTO, Pump & Reservoir
  • Boom Tip Worklight that auto-adjusts to load movement
  • Pumps: B Flange, 7/8″ – 13 Spline
  • 25 Gal. Bulkhead-Mount Reservoir
  • Front/Rear – Manual or Hydraulic Outrigger Packages
  • Mounting Pedestal for platform bodies (36″)
  • Adjustable Boom Rest for utility body (18″ – 26″)
  • Custom Paint (Solid color, single-stage Imron, non-metallic)
