ESV1000

Max. Capacity 1,000 lb
Crane Rating 3,000 ft-lb
Max. Reach 3 ft
Applications Enclosed Service Bodies/Utility Bodies/Box Trucks
Get A Quote

A new kind of lifting solution.

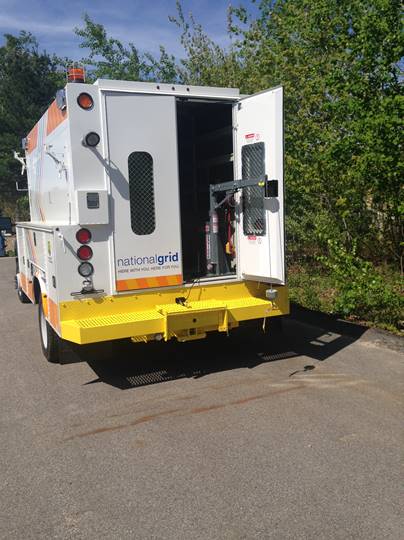

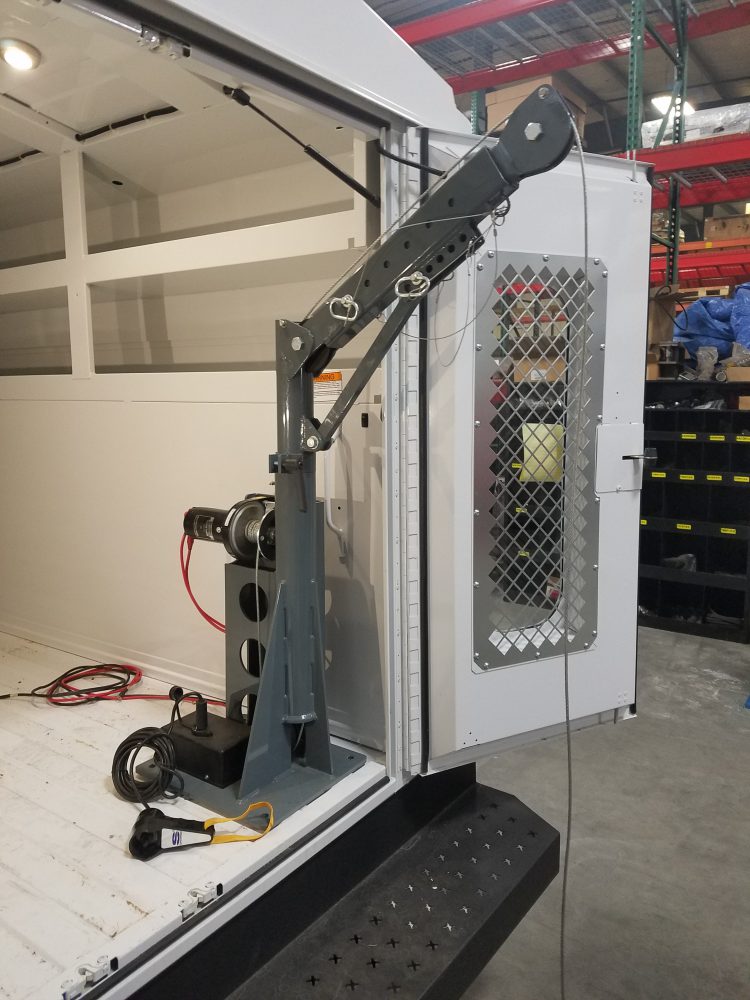

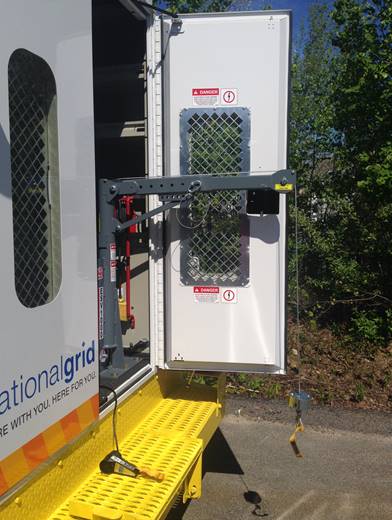

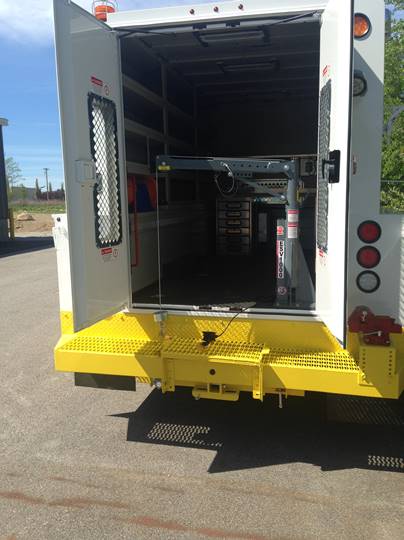

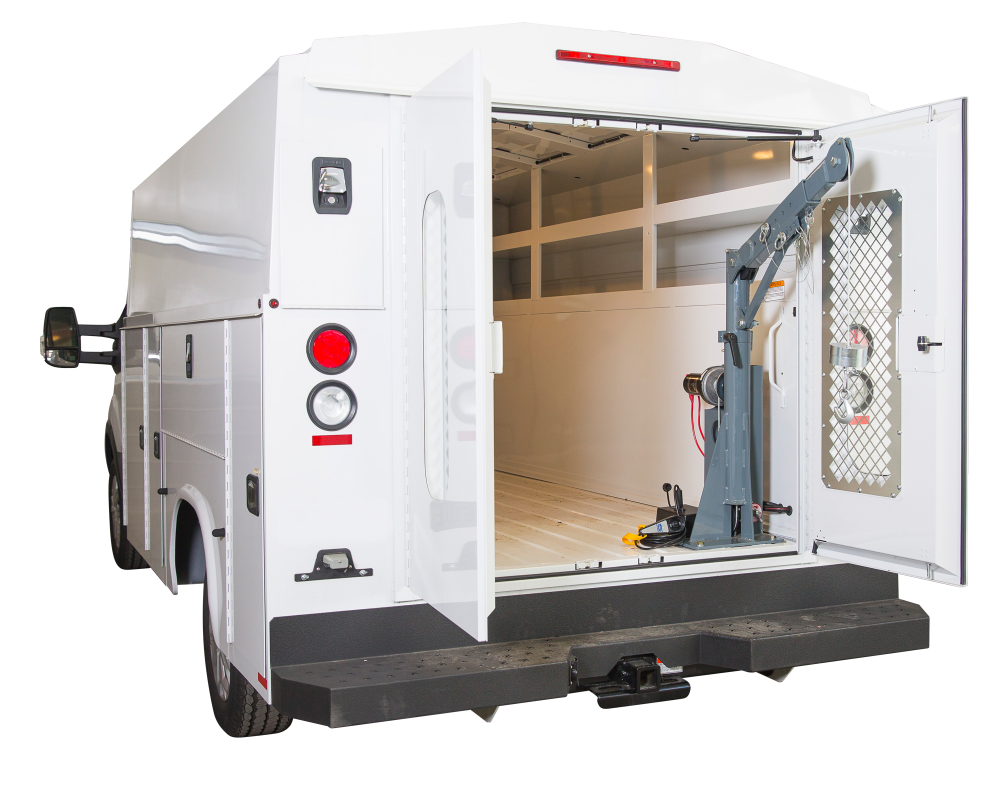

The ESV1000 now offers you a lifting solution for the jobsite with your enclosed service body.  With an extremely small footprint, the crane can stow nicely against the inside wall on either the curb-side or street-side of the service body when not in use.  With the telescopic boom, the ESV1000 can fit in any of the enclosed service bodies without the need for any add-ons or specialty mounting kits.  The 12V DC winch wires directly to the battery and includes a 12 FT pendant controller with up/down functions.  The winch is situated in a fixed housing to the side of the crane.  This will allow the boom to swing with zero winch interference, giving the crane a wide swing radius.

Get A Quote Contact Sales

PRODUCT FEATURES

Compact Footprint

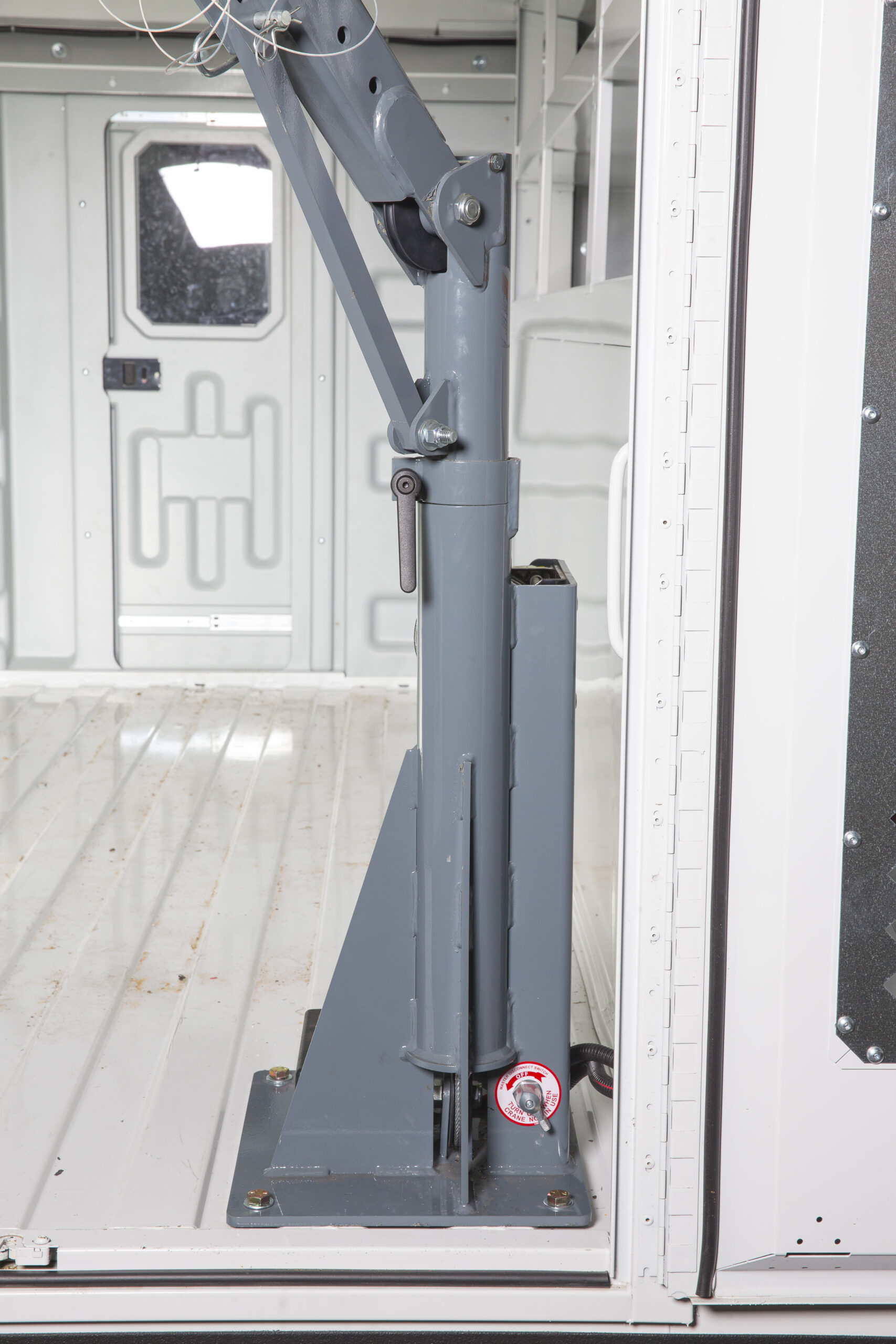

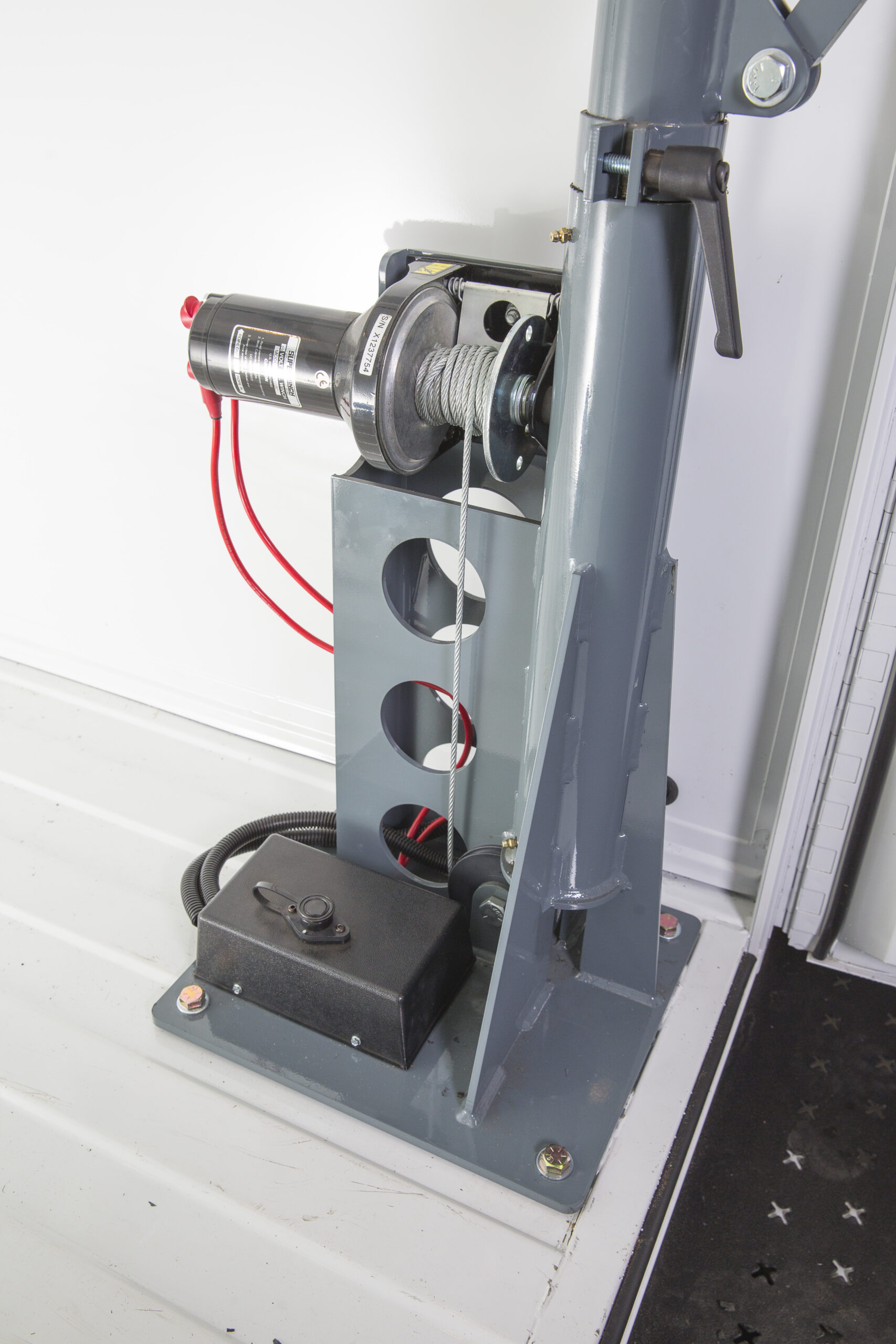

The Venturo ESV1000 includes a 10″ x 10″ base plate which utilizes very little cargo space and includes a fixed winch to the side of the housing which does not interfere with boom rotation or cargo loading/unloading.

Universal Placement
The ESV1000 can be placed in an enclosed service body, utility body, pickup bed, flatbed and many other applications.  Crane includes 4 bolts with user discretion for floor reinforcement.



Get A Quote

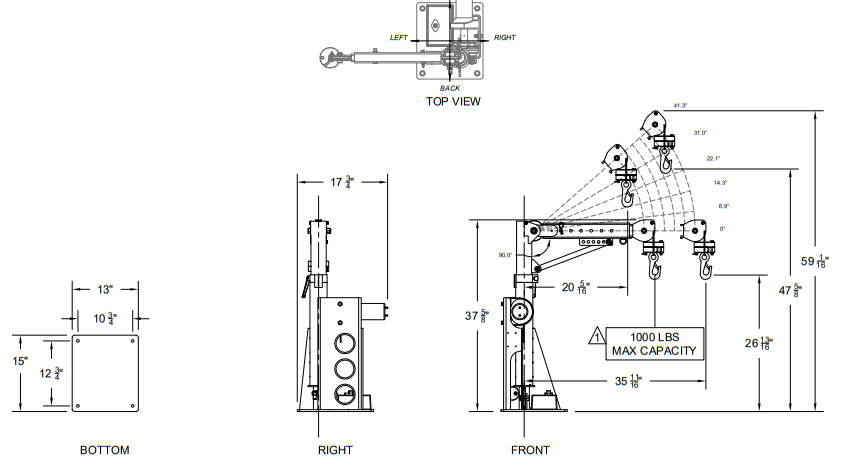

specifications

  • Maximum Lift Capacity
  • 1,000 lb
  • Crane Rating
  • 3,000 ft-lb
  • Maximum Reach
  • 2 ft
  • Rotation
  • Full, Manual Rotation
  • Power Source
  • Electric Power 12V DC
  • Wire Rope
  • 25 ft of 3/16″ Aircraft-Quality Wire Rope (Optional 50 ft)
  • Stowed Height
  • 37-5/8"
  • Mounting Space
  • 15" x 13" Floor Plate
  • Weight
  • 175 lb

standard features

  • Adjustable Rotation-Stop
  • Remote Control Pendant with 20 ft cord and Quick Disconnect
  • Load block with swivel hook and safety latch
  • Master Disconnect Switch Kit
  • 25 ft, 4-gauge battery cable
